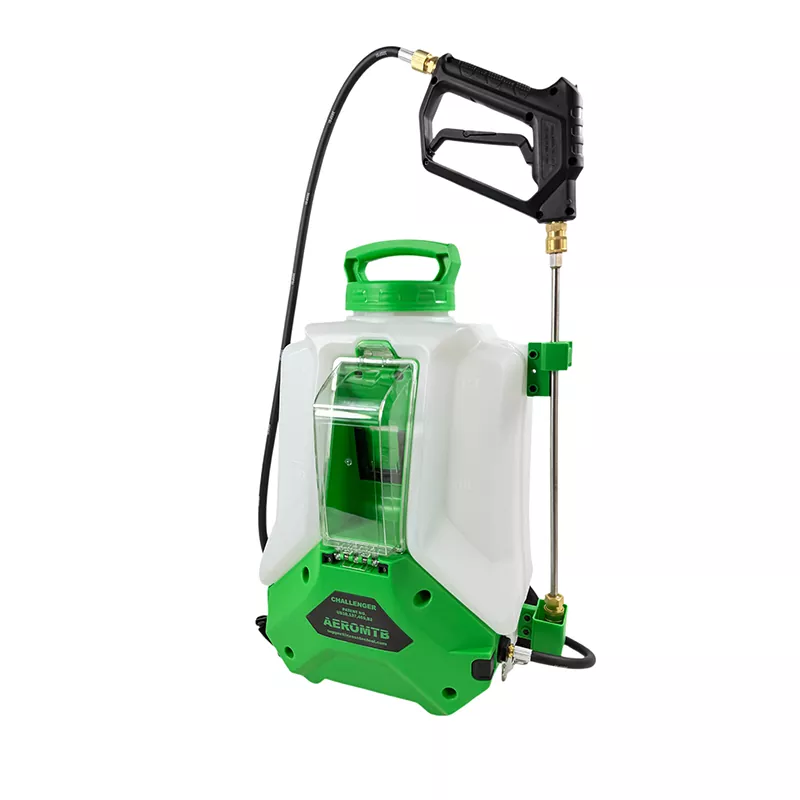

Abstract: The 15L Backpack Sprayer Diaphragm Pump with 18V 2.6A Battery is designed to make agricultural, horticultural, landscaping, and sanitation spraying more efficient and comfortable. Developed by Crosstec, this battery-powered solution combines a 15-liter tank, durable diaphragm pump, rechargeable lithium battery, adjustable pressure, interchangeable nozzles, and an ergonomic backpack structure. With working pressure of 0.5–4.6 bar, liquid flow of 0.6–1.8 L/min, a spray distance of more than 8 meters, and a pump life of up to 1,000 hours, it provides a practical alternative to conventional manual sprayers for professional and commercial users.
Table of Contents
- Why Choose a Battery-Powered Backpack Sprayer?
- What Are the Key Features of the 15L Backpack Sprayer?
- How Does the Diaphragm Pump Improve Spraying Performance?
- What Makes the 18V 2.6Ah Battery Practical?
- What Are the Main Technical Specifications?
- Where Can This Backpack Sprayer Be Used?
- How Can Buyers Maximize Sprayer Performance?
- Frequently Asked Questions
- Conclusion
Why Choose a Battery-Powered Backpack Sprayer?
Traditional manual backpack sprayers require repeated pumping to maintain pressure. During extended agricultural or landscaping work, this can increase operator fatigue and make pressure less consistent. A battery-powered sprayer eliminates the need for continuous manual pumping, allowing the operator to concentrate on spray coverage and application accuracy.
The 15L Backpack Sprayer Diaphragm Pump with 18V 2.6A Battery uses an electric diaphragm pump to provide continuous pressure during operation. Its adjustable working pressure of 0.5–4.6 bar (7–66 PSI) gives users greater control over different spraying requirements.
The 15-liter tank also provides a practical balance between capacity and portability. It can reduce the number of refills required when treating gardens, orchards, greenhouses, vineyards, lawns, and other outdoor areas.
- Reduces repetitive manual pumping.
- Provides more consistent pressure.
- Supports extended spraying operations.
- Reduces operator hand and arm fatigue.
- Improves productivity across larger working areas.
What Are the Key Features of the 15L Backpack Sprayer?
A professional sprayer should balance power, capacity, durability, control, and operator comfort. This model combines several practical features into one portable spraying system.
15-Liter High-Capacity Tank
The 15L tank is suitable for users who need sufficient liquid capacity without moving to a larger trolley-style machine. The tank is made from impact-resistant PE and is designed for demanding outdoor environments.
Adjustable Spraying Pressure
Stepless pressure adjustment allows users to adapt spraying output to different applications. Lower pressure can be useful for delicate plants or fine spraying, while higher pressure can support applications requiring greater reach and coverage.
Four Interchangeable Spray Nozzles
The included nozzle options allow users to select different spray patterns according to the job. Applications can include fine misting, pesticide application, herbicide spraying, liquid fertilizer distribution, and sanitation.
Ergonomic Backpack Design
Adjustable shoulder straps, breathable back padding, and balanced weight distribution help improve carrying comfort. This is particularly important when the sprayer is used for extended periods.
Leak-Resistant Construction
Heavy-duty sealing gaskets, leak-resistant hose connections, and a spare gasket kit help reduce the risk of leakage. Better sealing can also help minimize liquid waste and unnecessary maintenance.
How Does the Diaphragm Pump Improve Spraying Performance?
The diaphragm pump is one of the most important components of an electric backpack sprayer. Instead of relying on manual pumping, the electric motor drives the diaphragm mechanism to move liquid through the spraying system.
For this model, the pump provides a liquid flow range of 0.6–1.8 L/min and a working pressure range of 0.5–4.6 bar. The manufacturer specifies a pump service life of up to 1,000 hours under appropriate operating conditions.
This combination of pressure and flow provides several practical benefits:
- Consistent output: Electric pumping helps maintain stable spraying performance.
- Better application control: Adjustable pressure allows users to match output to the task.
- Reduced physical effort: Operators do not need to repeatedly pressurize the tank manually.
- Extended working capability: The system is designed for continuous operation ranging from approximately 1.5 to 10 hours depending on operating conditions.
- Long service potential: A diaphragm pump life of up to 1,000 hours can support regular professional use.
For commercial users, pump consistency is especially important because uneven pressure can result in inconsistent coverage and unnecessary liquid consumption.
What Makes the 18V 2.6Ah Battery Practical?
The 18V 2.6Ah lithium battery provides the electrical power required to operate the diaphragm pump without a fuel engine or manual pressurization. According to the product specifications, the battery system can provide up to 1,000 charging cycles and is compatible with DeWalt 18V batteries.
Battery-powered operation offers several advantages for outdoor spraying:
- No gasoline engine emissions during operation.
- Lower operating noise compared with many fuel-powered alternatives.
- Convenient cordless operation.
- Less physical effort than manual pumping.
- Easy transportation across gardens, farms, and landscaped areas.
Actual operating time depends on pressure settings, spraying frequency, liquid viscosity, nozzle selection, and other working conditions. Therefore, users should select operating parameters according to the specific application rather than treating the maximum stated runtime as a guaranteed duration for every job.
What Are the Main Technical Specifications?
Understanding the specifications is important for agricultural distributors, professional users, wholesalers, and OEM buyers evaluating a battery backpack sprayer.
| Specification | Details |
|---|---|
| Product Type | Battery-powered backpack sprayer |
| Tank Capacity | 15L (4 gallons) |
| Battery | 18V / 2.6Ah lithium battery |
| Pump Type | Diaphragm pump |
| Working Pressure | 0.5–4.6 bar / 7–66 PSI |
| Liquid Flow | 0.6–1.8 L/min |
| Spray Distance | More than 8 meters |
| Pump Life | Up to 1,000 hours |
| Battery Cycle Life | Up to 1,000 cycles |
| Continuous Working Time | Approximately 1.5–10 hours |
| Spray Nozzles | 4 interchangeable nozzles |
| Certification | CE & EMC |
| HS Code | 8424810000 |
These specifications make the sprayer suitable for users looking for a portable solution that combines a relatively large liquid capacity with battery-powered operation and adjustable pressure control.
Where Can This Backpack Sprayer Be Used?
The versatility of the sprayer makes it suitable for agricultural, horticultural, landscaping, sanitation, and outdoor maintenance tasks. The combination of interchangeable nozzles, adjustable pressure, and an 8-meter-plus spray distance allows users to configure the equipment for different applications.
Agriculture and Crop Protection
The sprayer can be used for pesticide, herbicide, and crop-protection applications. Stable pressure helps users maintain more consistent coverage across plants.
Orchards and Vineyards
Backpack mobility is useful when working between rows of fruit trees or vines where larger wheeled equipment may be difficult to maneuver.
Greenhouses and Nurseries
The cordless design can be convenient in greenhouse environments where portability and controlled liquid application are important.
Lawn and Garden Maintenance
Home gardeners, landscaping professionals, and garden maintenance teams can use the sprayer for plant care, fertilizer application, weed management, and general outdoor maintenance.
Sanitation and Cleaning
The sprayer can also support disinfection and sanitation applications where the selected liquid and equipment configuration are appropriate. Users should always follow the chemical manufacturer's instructions regarding concentration, application method, protective equipment, and equipment compatibility.
How Can Buyers Maximize Sprayer Performance?
Choosing the right sprayer is only the first step. Correct operation and routine maintenance can significantly influence service life and spraying consistency.
- Choose the correct nozzle: Match the nozzle type and spray pattern to the intended application.
- Adjust pressure appropriately: Avoid using unnecessarily high pressure when a lower setting can achieve the desired coverage.
- Clean the system after use: Flush the tank, hose, lance, and nozzle according to the liquid manufacturer's recommendations.
- Inspect seals and connections: Check gaskets, hoses, and fittings regularly for wear or leakage.
- Maintain the battery: Follow appropriate charging and storage practices for the lithium battery.
- Protect the pump: Prevent debris from entering the liquid system and clean filters or related components as required.
- Use compatible chemicals: Verify chemical compatibility with the tank, diaphragm, seals, hose, and other wetted components before use.
For distributors and importers, it is also useful to evaluate product consistency, packaging, documentation, replacement components, customization capabilities, and after-sales support when selecting a China battery sprayer manufacturer.
Frequently Asked Questions
1. How much liquid can the backpack sprayer hold?
The tank capacity is 15 liters, equivalent to approximately 4 gallons. This capacity is designed to reduce refill frequency while remaining suitable for backpack operation.
2. What pressure does the diaphragm pump provide?
The specified working pressure range is 0.5–4.6 bar, or approximately 7–66 PSI. The adjustable pressure range allows users to adapt the spraying output to different applications.
3. How long can the 18V 2.6Ah battery operate the sprayer?
The stated continuous working time is approximately 1.5–10 hours, depending on operating conditions, pressure settings, and spraying requirements.
4. Is the pump suitable for professional agricultural applications?
Yes. The diaphragm pump is designed for agricultural spraying, crop protection, horticulture, landscaping, and related applications, with a stated pump life of up to 1,000 hours.
5. How far can the sprayer spray?
The specified spray distance is more than 8 meters. Actual distance will vary according to nozzle selection, pressure, liquid characteristics, wind, and operating conditions.
6. Can the sprayer be used for different spraying tasks?
Yes. Four interchangeable spray nozzles and adjustable pressure provide flexibility for applications such as plant care, fertilizer spraying, weed control, crop protection, and appropriate sanitation work.
7. Is the product suitable for wholesale or OEM purchasing?
Yes. Crosstec provides battery sprayer manufacturing and OEM/ODM solutions for distributors, wholesalers, agricultural suppliers, importers, and private-label customers. Buyers should discuss customization, packaging, quantities, and technical requirements with the manufacturer before placing an order.
Conclusion
The 15L Backpack Sprayer Diaphragm Pump with 18V 2.6A Battery combines cordless convenience, a 15-liter tank, adjustable diaphragm-pump pressure, interchangeable nozzles, and an ergonomic backpack design in one practical spraying solution. Its 0.6–1.8 L/min flow range, 0.5–4.6 bar working pressure, more-than-8-meter spray distance, and long-life pump and battery specifications make it a versatile choice for agricultural, horticultural, landscaping, and sanitation applications.
For distributors, wholesalers, and professional buyers looking for a reliable battery-powered backpack sprayer from a China manufacturer, Crosstec offers product development, manufacturing, OEM/ODM support, and a broader range of electric spraying equipment. If you are evaluating specifications, private-label opportunities, bulk purchasing, or customized spraying solutions, contact us to discuss your requirements and find the right configuration for your market.
